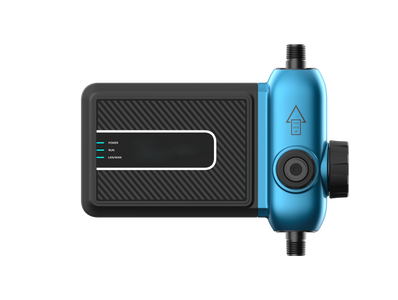

Kau Water Quality Monitor

---

 The Kau series water quality monitor is a real-time, online monitoring instrument designed to analyse flowing water within pipes. By utilising hyperspectral data collection, it overcomes the limitations of traditional micro-stations, such as large volumes and long monitoring cycles.

The system is equipped with built-in edge computing and offers several smart management functions:

• Real-time Display & Control: Provides real-time indicator displays and intelligent device control.

• Remote Maintenance: Supports remote algorithm upgrades and one-key calibration.

• Automated Maintenance: Features automatic pipe cleaning and dual-channel data backup.

• Monitoring Indicators: Measures turbidity, suspended solids, chlorophyll, COD, total nitrogen, and dissolved oxygen.

• Data Access: Users can view information via a large-screen dashboard (featuring device status, historical data, and alarms) or a dedicated mobile APP.

• High Frequency: Directly collects data from flowing water in pipes, achieving second-level monitoring frequencies without the need for drainage conditions.

• High Integration: Features a compact design with two standard water inlets for easy wall-mount installation using standard pipe fittings.

• Low Cost: The unique pipeline design eliminates the need for water tanks and flow valves, significantly reducing construction and equipment costs.

BAS10C - 41

Spectral range:  190-960nm

Channels:> 500

Spectral Resolution: Better than 2nm

Sampling Interval: Better than 1nm

Dimensions:275mm × 140mm × 100mm

Weight:≈1kg

Light Source: Active Source, Xenon Lamp

Operating Temp:0°C - +60°C

IP Rating: IP54

Power Supply: DC12

Communication: RS485 and/or 4G

BAS10A - 41

Spectral range:  200-1000nm

Channels: > 400

Spectral Resolution: Better than 5nm

Sampling Interval: Better than 2nm

Dimensions:275mm × 140mm × 100mm

Weight:≈1kg

Light Source: Active Source, Xenon Lamp

Operating Temp:0°C - +60°C

IP Rating: IP54

Power Supply: DC12

Communication: RS485 and/or 4G
