Water Quality Monitoring

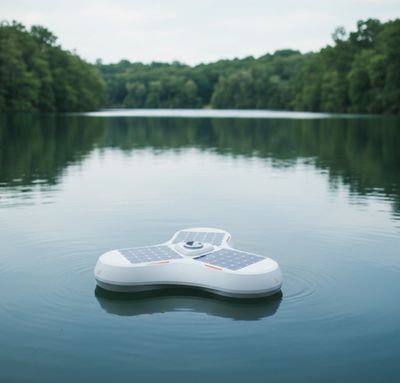

Floating Water Quality Spectrometer
This Floating Water Quality Spectrometer is an anchored, buoy-mounted system designed for continuous, real-time aquatic monitoring.
How it Works
- Deployment: Uses buoyancy and underwater anchors to maintain a fixed monitoring position.
- Transmission: Data is sent via a 4G module to a cloud platform for algorithmic processing.
- Sensing: Combines spectral analysis with physical sensors (temperature and conductivity).
Monitored Indicators
The system calculates a wide range of water quality metrics simultaneously:
- Chemical: COD, Total Phosphorus, Total Nitrogen, Ammonia Nitrogen.
- Physical: pH, Turbidity, Dissolved Oxygen (DO).
- Environmental: Temperature and Conductivity.
Key Features
- 24/7 Automated Monitoring: Continuous spectral data acquisition without manual intervention.
- Real-time Alerts: Automatic alarms trigger if any indicators exceed safety standards.
- Remote Display: All data is visualised on a central platform for instant assessment.
Specifications
LAS30C - 11
Spectral range: 190-960nm
Weight: ≈17kg (including battery)
Channels:> 500
Spectral Resolution: > 2nm
Sampling Interval: > 1nm
Dimensions:1030mm × 1120mm × 300mm
Weight:≈17kg (including battery)
Light Source: Active Source, Xenon Lamp
Operating Temp:0°C - +60°C
IP Rating: IP67
Power Supply: Built-in Solar Power
Specifications
LAS30A - 11
Spectral range 200-1000nm
Weight: ≈17kg (including battery)
Channels:> 400
Spectral Resolution: > 5nm
Sampling Interval: > 2nm
Dimensions:1030mm × 1120mm × 300mm
Weight:≈17kg (including battery)
Light Source: Active Source, Xenon Lamp
Operating Temp:0°C - +60°C
IP Rating: IP67
Power Supply: Built-in Solar Power
